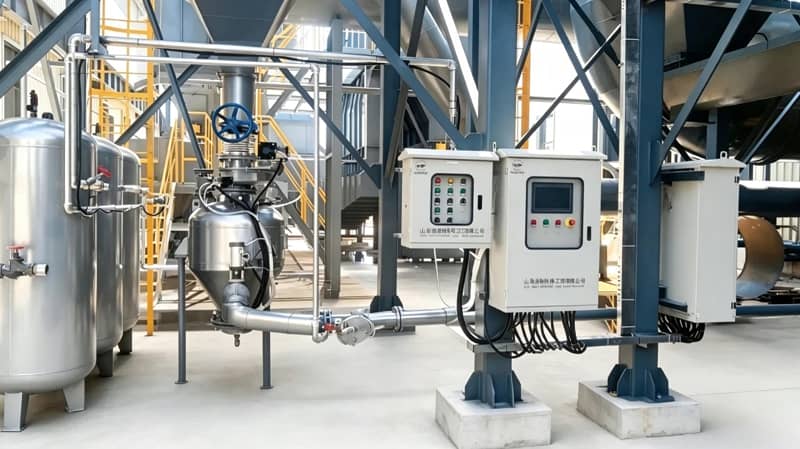

Sanitary Pneumatic Conveying & CIP System Case Study in Oral Solid Dosage Production

In modern oral solid dosage (OSD) manufacturing, the clean transfer of powder ingredients between storage silos, mixers, and wet granulators is vital for pharmaceutical companies to pass updated GMP audits and ensure drug quality. This article examines a turnkey sanitary pneumatic conveying and Clean-in-Place (CIP) system custom-engineered by BIOP for a leading pharmaceutical enterprise, setting a benchmark for sterile, intelligent powder handling.

1. Customer Pain Points & Industry Challenges

Facing rigorous hygiene standards, the enterprise's legacy open manual handling methods exposed multiple systemic bottlenecks:

• High Hygiene & Cross-Contamination Risks: Traditional transfer led to cross-contamination, and internal residues were hard to clean completely, failing updated GMP surface roughness and dead-leg requirements.

• Low Cleaning Efficiency: Manual disassembly took 4-6 hours of downtime per clean, disrupting production schedules while wearing down seals and driving up spare part costs.

• Dust Emissions & Material Losses: Open transfer created airborne dust that polluted cleanrooms, caused valuable raw material losses, and lowered yields.

• Limited Automation & Traceability: Heavy reliance on manual work prevented seamless integration with upstream/downstream equipment (mixers, tablet presses), hindering batch traceability.

2. BIOP Tailored Solution & Core Advantages

Addressing strict pharmaceutical sterility requirements, BIOP engineered an integrated system combining sanitary assurance and smart controls:

1. Sanitary Design with CIP Integration: Built entirely from 316L medical-grade stainless steel with mirror-polished internal surfaces (Ra ≤ 0.4μm) and passivated welds to eliminate dead zones. Equipped with dedicated CIP spray balls and drain valves, automated cleaning is achieved without pipeline disassembly, slashing single-clean times to under 1 hour.

2. Fully Enclosed Conveying with Zero Dust: Utilizing advanced vacuum or dense-phase conveying, powders flow securely inside sealed pipelines, completely eliminating dust diffusion. High-efficiency filtration ensures 99.99% dust retention.

3. Smart Control & MES/ERP Integration: Integrated PLC and touch-screen HMI support recipe management, automated weighing, real-time monitoring, and historical data traceability. Seamlessly links with MES/ERP platforms, fully complying with FDA 21 CFR Part 11 electronic records.

4. Modular Customization for Diverse Powders: Configurable with explosion-proof features, nitrogen purging, and heating/cooling jackets for heat-sensitive or hygroscopic materials. Capacities range from 50 kg/h to 5,000 kg/h over distances up to 100 meters.

3. Application Results & Benefits
