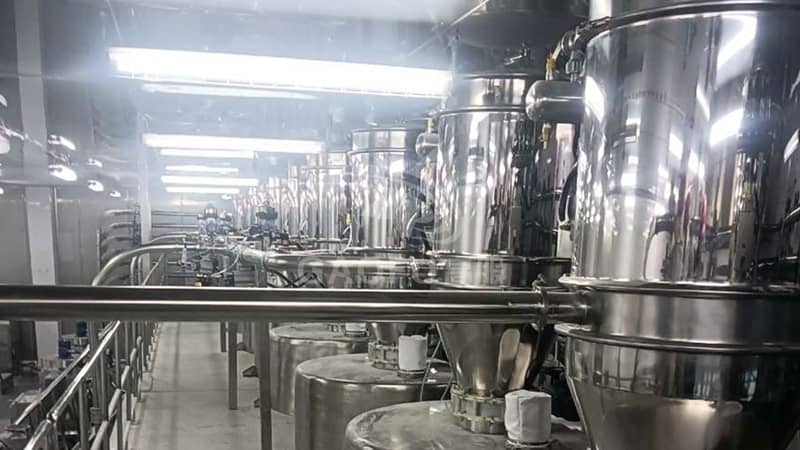

Vacuum Conveying & Automatic Batching System Case Study in Baking Industry

In modern industrial baking, maintaining high daily outputs requires rigorous hygiene standards, high feeding efficiency, and precise batching accuracy. This article deeply examines a turnkey vacuum conveying and batching system custom-designed by BIOP for a large bakery enterprise producing over 50 tons of bread and pastries daily.

1. Customer Pain Points & Project Background

As the enterprise expanded, traditional manual material handling exposed several critical operational bottlenecks:

• High Labor Intensity: Workers had to repeatedly lift and dump materials manually, leading to low efficiency and fatigue.

• Severe Dust Pollution: Flour and sugar dumping generated heavy airborne dust, degrading workshop air quality and worker health.

• Inaccurate Batching: Manual weighing errors frequently caused inconsistent dough quality and product taste variations.

• Sanitation Challenges: Open-environment setups made cleaning difficult, hindering compliance with food GMP standards.

2. Project Requirements

To overcome these production bottlenecks, the client established strict system requirements:

• Totally enclosed, dust-free conveying of flour, sugar, and minor ingredients.

• Simultaneous and multi-line material supply to multiple dough mixers.

• Preservation of material integrity without caking or segregation during transport.

• High operational stability with a drastic reduction in manual labor.

• Full compliance with strict food industry GMP sanitary standards.

3. BIOP Engineering Solution

BIOP engineered an integrated system featuring dust-free dumping, vacuum transport, weighing, and multi-point distribution:

1. Dust-Free Dumping Station: Manual bag tipping for flour and sugar equipped with integrated reverse-pulse dust collection to prevent fugitive emissions.

2. Vacuum Conveying Machine: Powered by negative pressure airflow to draw materials from the dumping station to buffer hoppers through sealed pipelines.

3. Buffer Hopper & Weighing: Temporary storage integrated with high-precision electronic load cells for accurate batch formulation.

4. Multi-Point Diverter Valves: Directs measured ingredients precisely to multiple dough mixers from a centralized system.

5. PLC Automation Control: One-button startup and visual real-time monitoring of conveying, weighing, and feeding processes.

4. Application Results & Benefits

5. Customer Feedback & Summary
