Negative Pressure Dilute Phase Conveying System

Negative Pressure Dilute Phase Conveying System

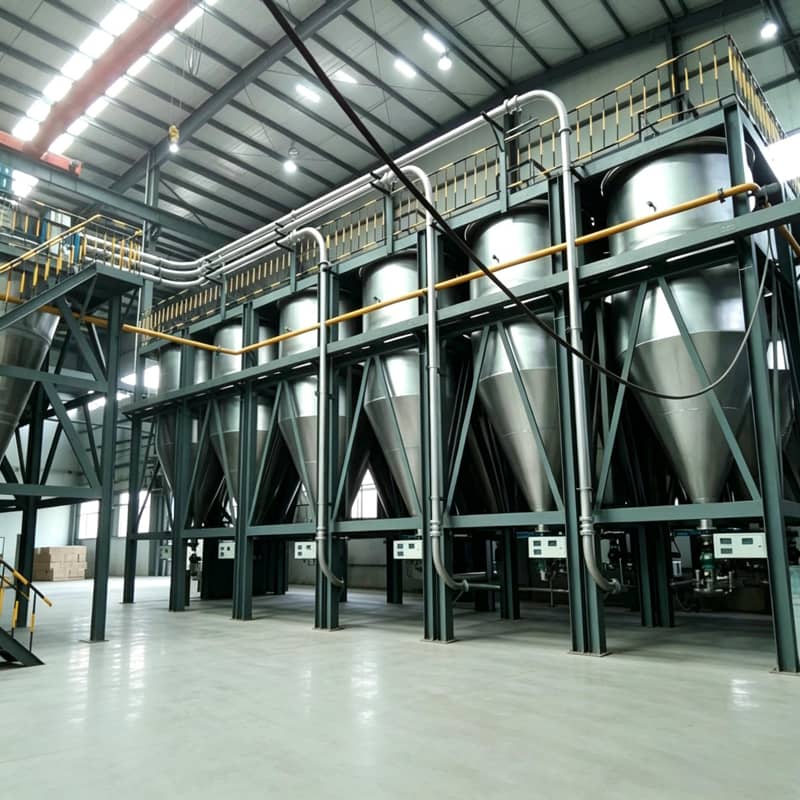

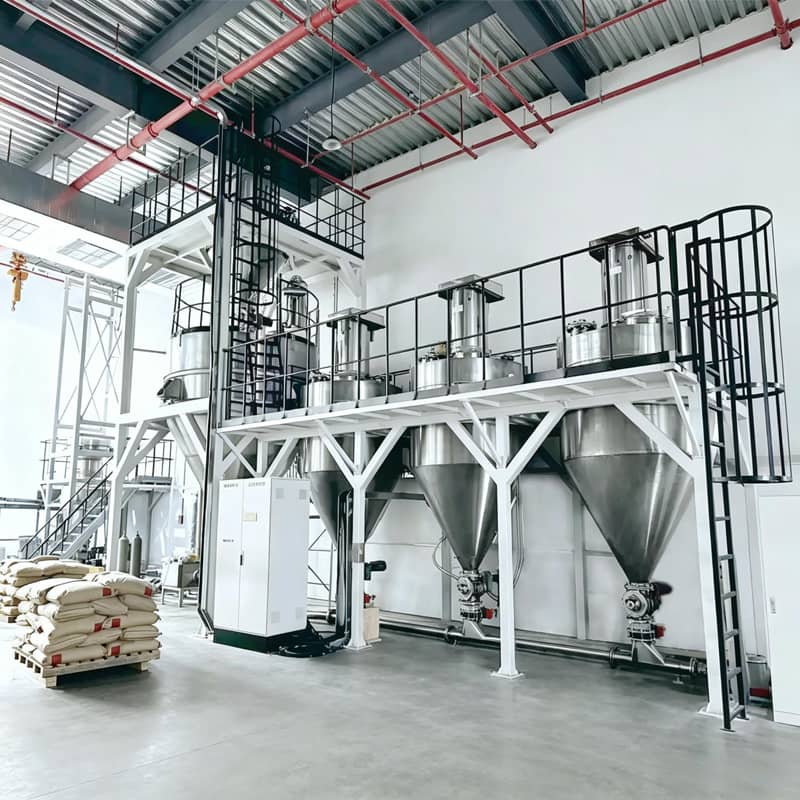

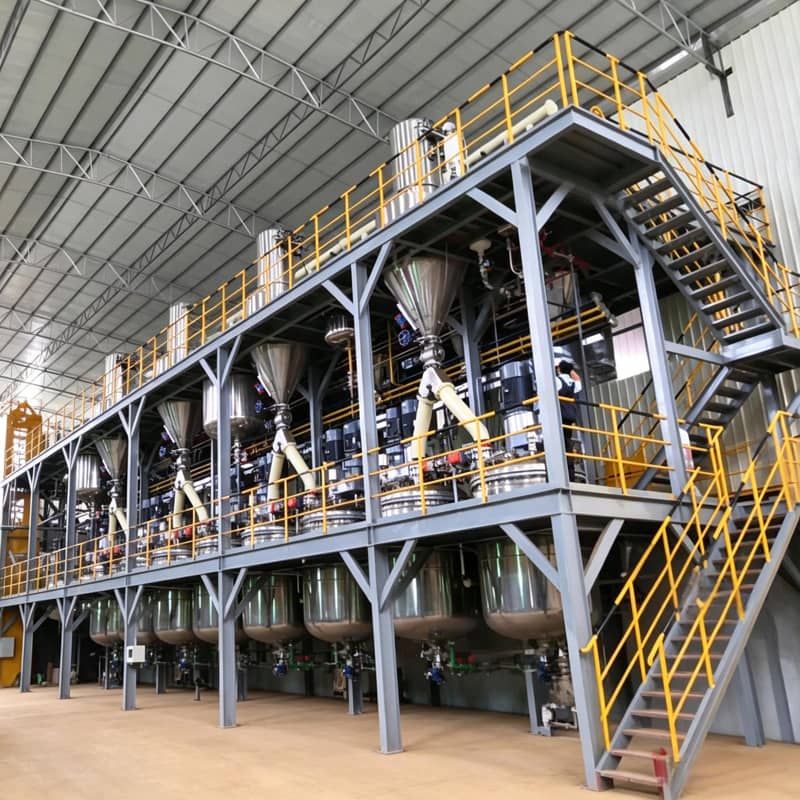

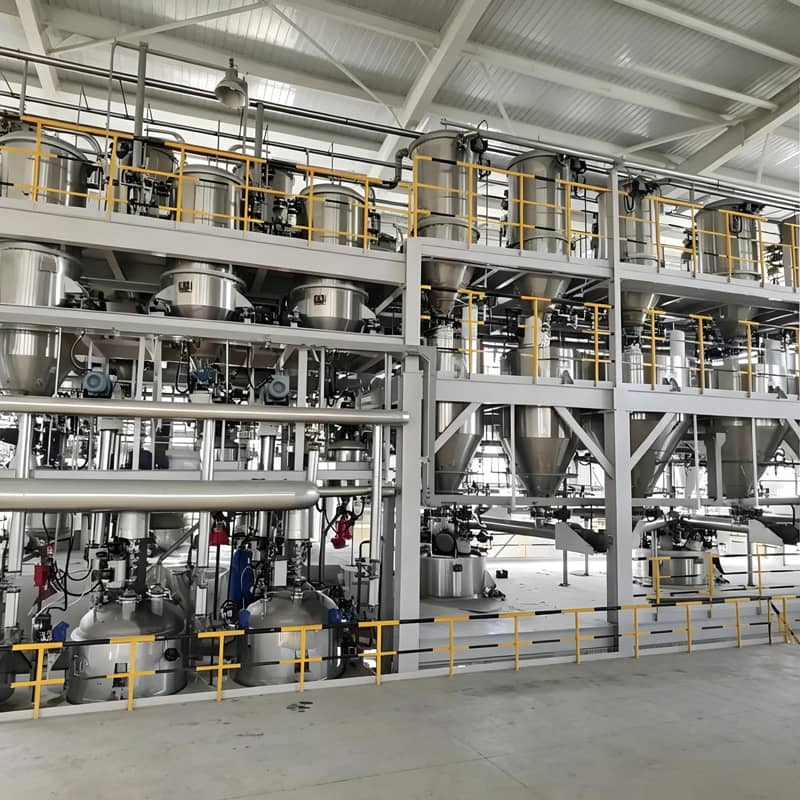

The BIOP Negative Pressure Dilute Phase Conveying System (also known as a vacuum transfer system or suction conveyor) is an advanced material handling solution engineered for clean, efficient, and multi-point powder transfer. Utilizing a high-performance vacuum pump to create negative pressure within a sealed pipeline, this system draws powders and granules from multiple feed sources (such as big bags, stations, or reactors) and delivers them to target vessels. Operating entirely under negative pressure, it completely eliminates dust leakage, making it ideal for chemical, pharmaceutical, food, and battery material plants.

Key Engineering Advantages

• Dust-Free Negative Pressure Environment: The entire conveying network operates below atmospheric pressure. Any minor gap draws air inward rather than leaking powder, ensuring a spotless workplace.

• Flexible Multi-Point Suction: A single vacuum source can easily collect and transfer materials from multiple distinct stations or rooms, significantly reducing capital expenditure.

• Gentle Dilute Phase Transfer: Balanced air-to-solids ratios keep materials suspended in high-speed airflow, perfect for free-flowing, fine, or dusty powders.

• Automated Modular Control: Equipped with precision filter-cleaning mechanisms and a smart PLC control panel to automate suction, pulse-jet purging, and discharging cycles.

Technical Specifications
